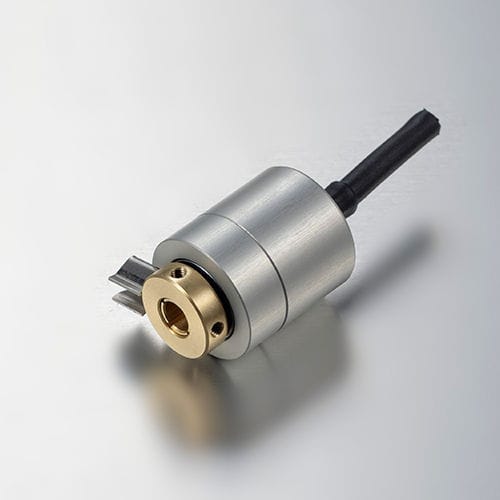

Incremental rotary encoder 28 serieshollow-shaftIP64industrial
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Construction
- hollow-shaft
- Protection level
- IP64
- Applications
- industrial
- Other characteristics
- miniature
- Housing diameter
24 mm
(0.94 in)
Description
MINIATURE BLIND HOLLOW SHAFT INCREMENTAL ENCODER FOR INDUSTRIAL APPLICATIONS
Resolution up to 1.024 pulses per turn
External diameter 24 mm
Blind hollow shaft Ø 4, 6 or 8 mm
Protection class IP64 according to DIN EN 60529
Shaft fixing through setscrew or clamp
Anti-rotation system through flexible flange or pin torque support
Connection by cable (other cable lenght available)
