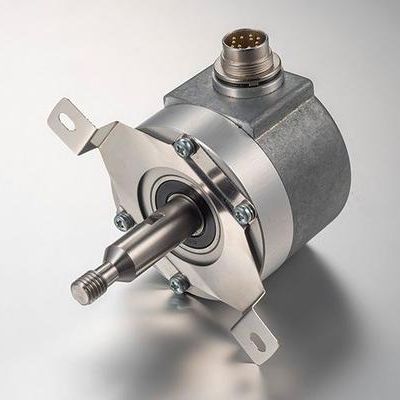

Incremental rotary encoder 66 series

mechanicalflangealuminum

Resolution up to pulses per turn External diameter Thread shaft Protection class according to DIN EN 60529 Anti-rotation system through flexible flange or anti- turn stick Connection by cable (other cable length available) or industrial connector M16MECHANICAL SPECIFICATIONS Materials Cover: Aluminium Housing: Aluminium Shaft: Stainless Steel Bearings Ballraces Bearings lifetime 1x10¹⁰ rev. Housing fixing Flexible flange 90.1027 (assembled) Flexible flange 90.1045 (assembled) Anti-turn stick 90.1041 (self-assembly kit included) Permitted misalignment ±0.5 mm axial, ±0.3 mm radial (90.1027, 90.1045, 90.1041) Maximum number of revolutions permitted mechanically 6000 rpm Protection against dust and splashes according to DIN EN 60529 IP64 Rotor inertia moment 30 gcm² Starting torque at 20°C (68°F) ≤ 0,02 Nm Maximum load permitted on axial shaft 40 N Maximum load permitted on radial shaft 60 N Weight aprox. 0,5 Kg Shock according to DIN EN 60068-2-27 1000 m/s² (6ms) Maximum pulses per turn 10.000 Radial cable 2 meters cable or industrial connector M16 (other cable lengths available on order) Female connector not included
