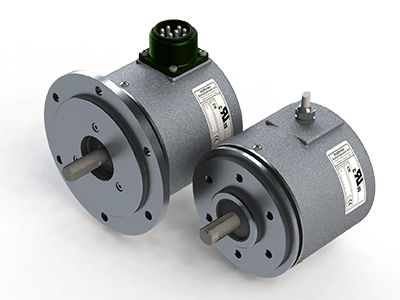

Incremental rotary encoder TR seriesmechanical15VDC24 Vdc
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- mechanical
- Supply voltage
- 15VDC, 24 Vdc, 5 VDC, 12 Vdc, 6VDC, 8VDC, 9VDC
- Material
- aluminum, stainless steel
- Protection level
- robust, IP65, IP68
- Housing diameter
90 mm
(3.54 in)- Shaft diameter
Max.: 12 mm
(0.47 in)Min.: 10 mm
(0.39 in)- Rotational speed
Max.: 6,000 rpm
(37,699 rad.min-1)Min.: 3,000 rpm
(18,850 rad.min-1)- Process temperature
Max.: 100 °C
(212 °F)Min.: -30 °C
(-22 °F)
Description
Incremental rotary-encoder
Solid shaft diameter of 10, 11 or 12mm
Housing diameter 90mm, robust design and high degree of protection
Maximum 90.000 pulses / revolution
For highest mechanical requirements
Also available in stainless steel for aggressive environmental conditions
