- Absolute rotary encoder
- Hohner Elektrotechnik GmbH

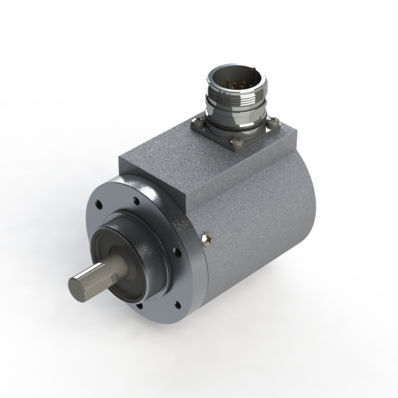

Absolute rotary encoder SM seriesmechanical28-bitmulti-turn
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- mechanical
- Absolute encoder resolution
- 28-bit
- Construction
- multi-turn
- Output signal
- parallel
- Supply voltage
- 15VDC, 24 Vdc, 12 Vdc
- Material
- aluminum, stainless steel
- Protection level
- IP67, IP65
- Applications
- industrial
- Other characteristics
- compact
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
Min.: 6 mm
(0.24 in)Max.: 10 mm
(0.39 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Output frequency
50 kHz
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Absolute multiturn rotary-encoder with parallel- or analogue output
Solid shaft diameter
Housing diameter , compact design and high protection of degree up to IP67
Maximum resolution 28 Bit
For highest industrial requirements
Also available in stainless steel for aggressive environmental conditions
