- Absolute rotary encoder
- Hohner Elektrotechnik GmbH

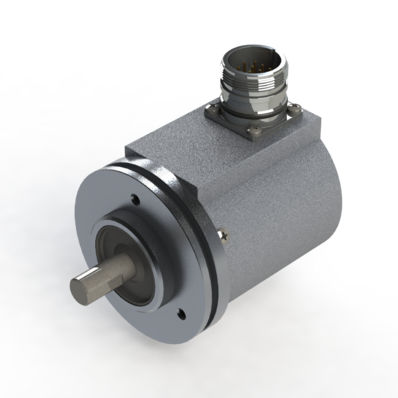

Absolute rotary encoder MM seriesmechanical16-bit12-bit
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- mechanical
- Absolute encoder resolution
- 16-bit, 12-bit, 14-bit, 10-bit, 24-bit, 18-bit, 8-bit, 20-bit, 22-bit, 28-bit
- Construction
- multi-turn
- Output signal
- parallel
- Supply voltage
- 15VDC, 24 Vdc, 12 Vdc
- Material
- aluminum, stainless steel
- Protection level
- IP65
- Applications
- industrial
- Other characteristics
- compact
- Housing diameter
65 mm
(2.56 in)- Shaft diameter
Max.: 12 mm
(0.47 in)Min.: 10 mm
(0.39 in)- Rotational speed
3,000 rpm
(18,850 rad.min-1)- Output frequency
50 kHz
- Process temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Absolute multiturn rotary-encoder with parallel- or analogue output
Solid shaft diamete
Housing diameter , compact design and high degree of protection
Maximum resolution 28 Bit
For highest industrial requirements
