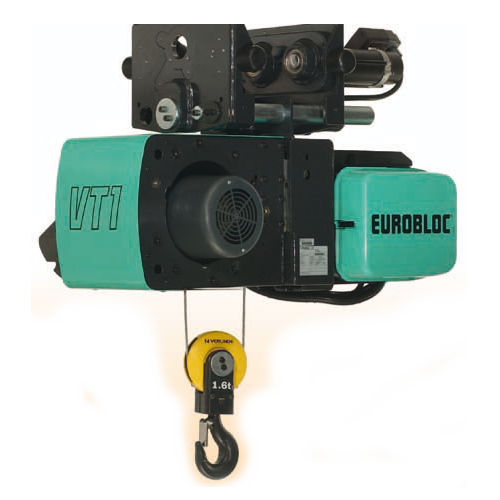

Electric cable hoist EUROBLOC VT series

2-speedheavy-duty

The Eurobloc VT electric wire rope hoist is a quality, heavy duty hoist best suited for high lifting capacities of 10,000kg or more and offers fast lifting speeds. The VT offers the smallest minimum hook height and hook approach distance on the market for a wire rope hoist, and there is also the possibility to adjust speed while travelling. • - Galvanised steel wire rope with a high safety factor • - Rotating hook and pulley block with safety latch • - Improved motor cooling • - Overload limiter as standard Technical Information Verlinde’s new VT electric wire rope hoist has a lifting capacity from 800kg to 80,000kg and boasts a total of 13 patents for its market leading design. • - Dual-speed hoisting motors with thermistor • - DC disc brake, maintenance free (hoisting) • - Four step geared limit switches • - Electro-mechanical overload protection • - Low voltage Control 48V • - Standard power supplies are 380V/400V/415V/50Hz and 440V/460V/60Hz • - IP55 / insulation class F motor protection • - Push button box with emergency stop • - Tropicalised motor for hoisting and travelling • - Rope guide suitable for an aggressive environment • - Time meter • - EC Declaration of Conformity • - Hook certificate • - Steel wire rope certificate • - Hoist owners manual according to EEC regulations • - Set of electrical schematics
