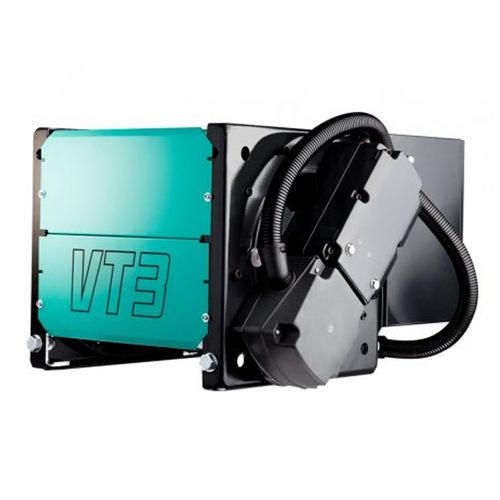

Electric winch VT

compact2-speed

The VT Machinery Winch is a compact high duty winch unit that is based on the VT electric wire rope hoist's technology and has a wide selection of optional extras available to tailor your winch to your specific needs, whilst offering a winching capacity of 400kg to 5,000kg. • - Supplied with electrics and control pendant • - Multi rope output options available • - Test certificate and wire rope certificate supplied Technical Information Verlinde's VT Machinery Winch's technical specification: • - Dual-speed hoisting motors with thermistor • - Rope drum capacity up to 200m • - Winching speeds up to 40m/pm • - High duty unit with grooved drum • - Fitted with rope pressure roller • - Multi-rope outputs available • - Maintenance free DC disc brake • - MT2 Predictive maintenance tool optional • - Hook blocks and diverter pulleys available • - Four steps gear limit switches • - Electro-mechanical overload protection • - Low voltage Control 48V • - Power supply: 415V / 3 ph / 50Hz • - Motor protection: IP55 / insulation class F • - Push button box with emergency stop • - Hoist owners manual (EEC regulations) • - Set of electrical diagrams • - Provided with EC Declaration of Conformity
