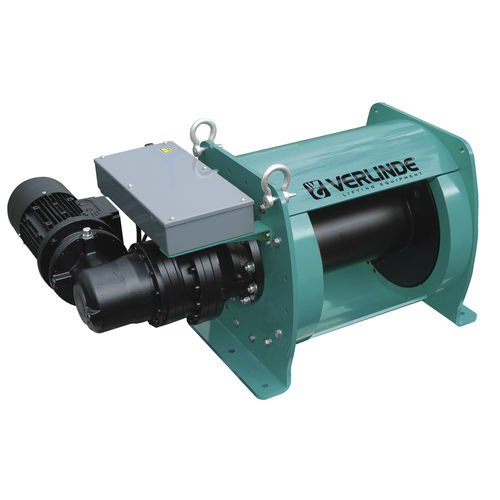

Electric winch TVI series

wire ropeliftinghaulage

The TVI electric winch has been designed for the industrial market and features a robust design and has a wide range of load capacities. It's diverse range of attachments means the TVI can be perfectly adapted to all standard lifting or pulling/hauling applications. • - Escape-proof termination for wire rope • - Adaptable frame components to configure rope exit direction • - Rope pressure roller in main frame • - Slack rope detection integrated into main frame Technical Information Verlinde's TVI Industrial Electric Winch's technical specification: • - Power Supply 230V/400V/3Ph/501Hz • - Low voltage control (24V) with Thermal Circuit Breaker • - Electric cubicle IP55 on the winch • - Winch can be configurable with a whole range of options • - Drum length of 350 mm • - Planetary gearbox • - Push button box with emergency stop and three metre control cable
