Electric winch Tirlift

liftingpullingrotary drum

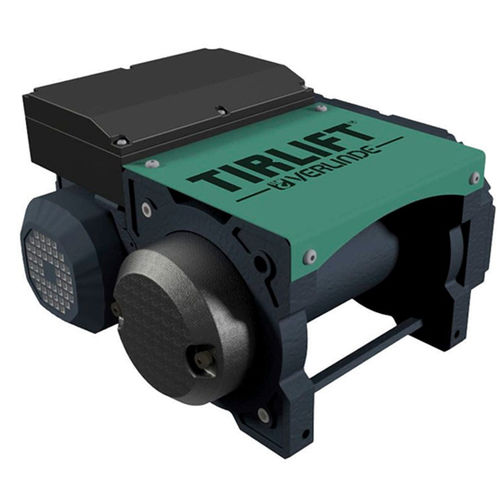

The Tirlift from Verlinde is an all-purpose electric winch suitable as a lifting and pulling winch. It is available in both a long drum and short drum to provide a lifting capacity range from 125kg to 1,500kg. The Tirlift's design allows it to be foot mounted, ceiling mounted or wall mounted dependent on what would suit your operation best. • - Long and short drum configuration available • - Lifting capacity from 125kg to1,500kg • - Available in 230V/1Ph/50Hz or 400V /3Ph/50Hz • - Single or dual-speed available • - Drum capacities of up to 68 metres Technical Information Verlinde's Tirlift Electric Winch's technical specification: • - Motor and electrics to IP55 protection • - Class F insulation • - Winch is configurable for a range of different rope exit directions from the drum • - Available in 230V/1Ph/50Hz or 400V /3Ph/50Hz • - Electro-mechanical disc brake • - Single, dual and variable -speed available • - Available in single phase power supply • - Start/stop contactor (for type B and C equipment) • - Electrical option A - without electrics but includes brake rectifier • - Electrical option B - with low voltage (48V) pendant push button box and emergency stop • - Electrical option C - with external low voltage (48V) wall mountable cubicle with 3 metres connection cable
