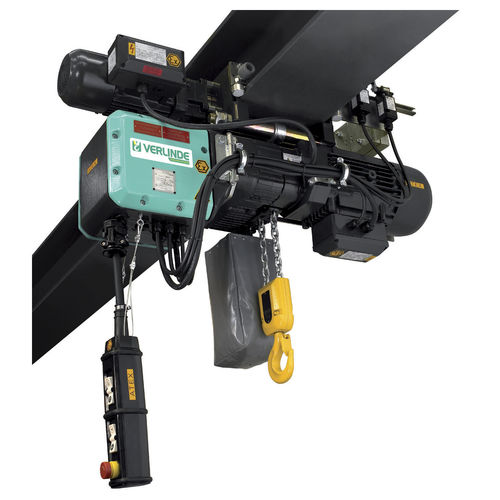

The Eurochain VL Electric Sparkproof Chain Hoist has a safe working load of 125kg to 10,000kg and is suitable for use in ATEX classified zone 1 environments where an explosive atmosphere consisting of a mixture with air or flammable substances in the form of gas, vapour or mist is likely to occur in normal operation occasionally.
• - An ideal solution for low and medium capacities from 125kg to 10,000kg
• - Epoxy paint with 5 year guarantee
• - Protection rating as standard is Zone 1, EEx de IIB T4 in compliance with EN/DIN
• - Supplied with Owner's Manual and EC Declaration of Conformity
Technical Information
The technical features of the Eurochain VL Electric Chain Hoist (ATEX Zone 1):
• - Standard height of lift 3 metres
• - 2 lifting speeds as standard
• - 2 trolley travel speeds as standard
• - IP55 hoisting motors with thermistors
• - Galvanised load chain
• - Stainless steel hand chain, if supplied chain travel trolley
• - Epoxy paint with 5 year guarantee
• - Hook suspended model, push, hand geared or electric trolley
• - Pendant push button box with control cable
• - 4 buttons pendant for hoist attached to electric trolley
• - 6 button box on hoist attached to electric trolley
• - Power supply 400 V / 3Ph / 50 Hz or 415 V / 3Ph / 50 Hz
• - Low voltage control 48 V
• - Overload Protection
• - Chain collector
• - Emergency stop button with main contactor
• - Supplied with EC Declaration of Conformity
