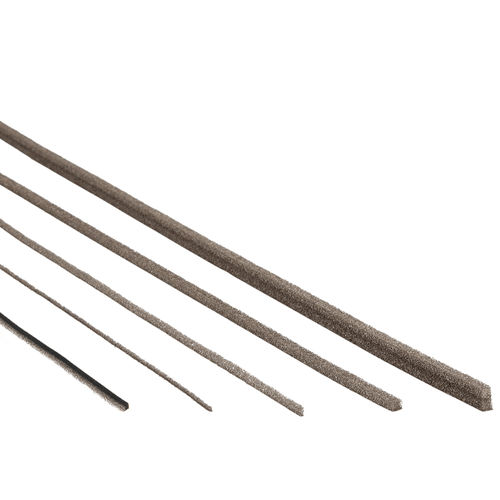

Flat gasket 1400 series

foamEMI shieldingfor printed circuit boards

This EMI/RFI gasket can be made so narrow that the height exceeds the width. Nevertheless, it provides sufficient electromagnetic damping. The gasket is made of a highly electrically conductive foam with or without an electrically conductive self-adhesive strip on one side. The electrically conductive foam can be compressed up to more than 50 % of its original height. The smallest width is 1mm and the maximum height is 6mm. Roll lengths of 1 to 1000 meters, depending on width and height of the EMI gasket. Applications • Shielding on printed circuit board (PCB) • EM, RF, LF, HF, EMI, RFI shielding • Other products where there is very little space available and low compression force is required Options • EMI/RFI miniature gasket with water seal • Resistant to high temperatures • With cooling holes • With or without self-adhesive • Made from electrically conductive foam or electrically conductive rubber • Electrically conductive rubber version for chemical resistance
