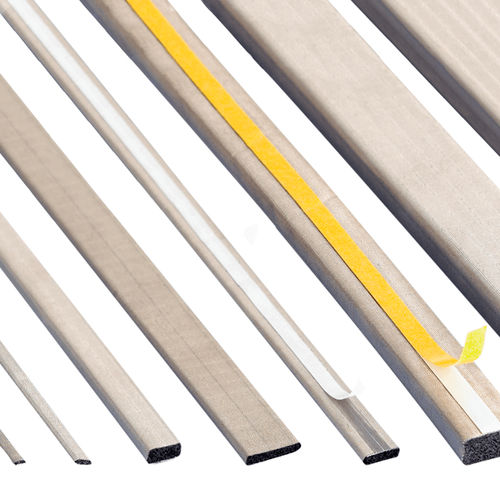

Profiled gasket 7000 series

neoprene®coated foamPVC

Standard Shield 7000 series is an economical HF (High Frequency) EMI shielding gasket which can be supplied in a wide range of dimensions. It is very effective in combination with stainless steel, copper and chrome-plated constructions. Our 7000 series Standard shield EMI gaskets can be provided with a conductive or a non-conductive self-adhesive strip on the back for easy assembly. Standard shield consists of a foam core covered with highly electrically conductive textile. The following foam cores can be chosen: Neoprene foam core (foam code N) EPDM foam core (foam code E) Low closure force PVC foam (foam code P) Flame retardant UL94V-0 foam (foam code F) For smaller widths than 3 mm we suggest to use the conductive adhesive (code 03). This guarantees excellent EMI/RFI shielding performance. Benefits • Self-adhesive EMC gasket • Easy to fit, can be cut with scissors • Gasket can be die-cut (screw-holes, bites for easy bending etc.) • Roll length of 1 to 1000 meters (Depending on width and height of the EMI gasket) • High EMI/RFI shielding performance • Low closure force • EXTREMELY STRONG • Deflection 50%
