Neoprene® gasket 8100 series

foampolyurethanesilicone

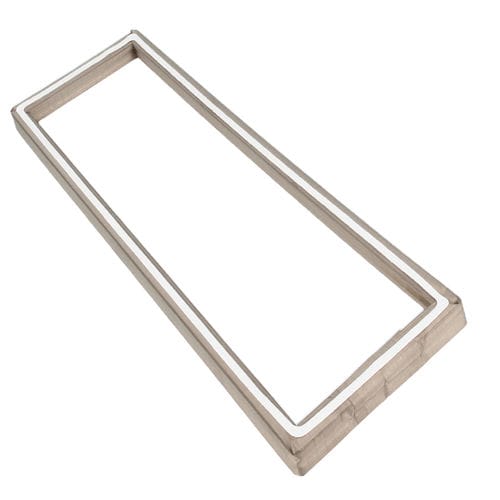

The 8100 series Frame gaskets are ready-made gaskets according to customer specifications. They have reinforced corner pieces to guarantee optimum shielding performance and easy mounting characteristics. The base material is Amucor shielding gasket, Standard shield or Ultra soft shield. The gasket can be produced with or without self-adhesive. When the gasket has little contact surface we recommend providing the gasket with an electrically conductive self-adhesive. The frame can be made with, without or with conductive adhesive and there is a amucor (8100) or conductive version (8101). If you send us a drawing, please include the dimensions shown above. Benefits • Easy mounting • High shielding performance • No tools required • Dimensions up to 2 x 2 m • Low closure force • EXTREMELY STRONG • Can be supplied with self-adhesive Core materials • N : Neoprene • P : Low closure force PVC foam • E : EPDM • F : Flame retardant UL94V-0 foam • S : Silicone foam • L : Polyurethane foam (ultra soft)
