Absolute pressure transmitter HK51
silicon4-20 mAHART

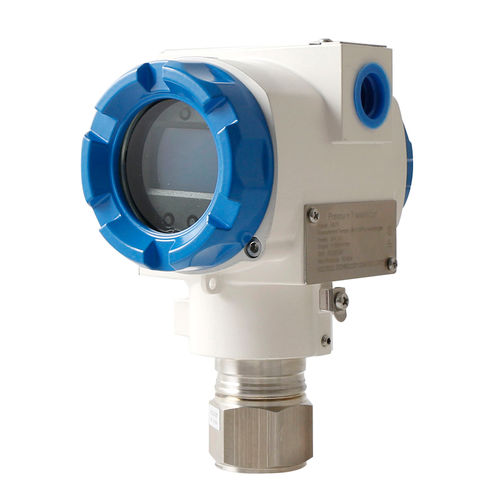

Absolute pressure transmitter - HK51  - Holykell - silicon / 4-20 mA / HART
Absolute pressure transmitter - HK51  - Holykell - silicon / 4-20 mA / HART
Absolute pressure transmitter - HK51  - Holykell - silicon / 4-20 mA / HART - image - 2
Absolute pressure transmitter - HK51  - Holykell - silicon / 4-20 mA / HART - image - 3
Absolute pressure transmitter - HK51  - Holykell - silicon / 4-20 mA / HART - image - 4
Absolute pressure transmitter - HK51  - Holykell - silicon / 4-20 mA / HART - image - 5
Absolute pressure transmitter - HK51  - Holykell - silicon / 4-20 mA / HART - image - 6
Add to favorites
Compare this product


Characteristics

Pressure type
absolute
Technology
silicon
Output
4-20 mA, HART, Profibus
Supply voltage
12 Vdc, 36 VDC
Mounting
threaded
Fluid
for gas
Material
stainless steel
Protection level
intrinsically safe, ATEX, flameproof
Applications
for HVAC systems, for medical applications, automotive, for the aeronautical industry
Other characteristics
precision, CE, smart, RoHS, combined
Pressure range

Min.: 0.1 Pa
(0 psi)

Max.: 100,000,000 Pa

Precision

0.08 %

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 125 °C
(257 °F)

Description

Monocrystalline Silicon Pressure Transmitter with its 4 ... 20 mA, 4 ... 20 mA HART, PROFIBUS PA or FOUNDATION Fieldbus output signals, combined with either intrinsically-safe or flameproof ignition protection (in accordance with ATEX). Application : ● Hazardous area ● Level, volume or mass measurements in liquids Advantages Excellent environmental adaptability Smart static pressure compensation and temperature compensation protect the transmitter from effects of temperature, static pressure and overpressure, and minimize on-site comprehensive measurement error.
