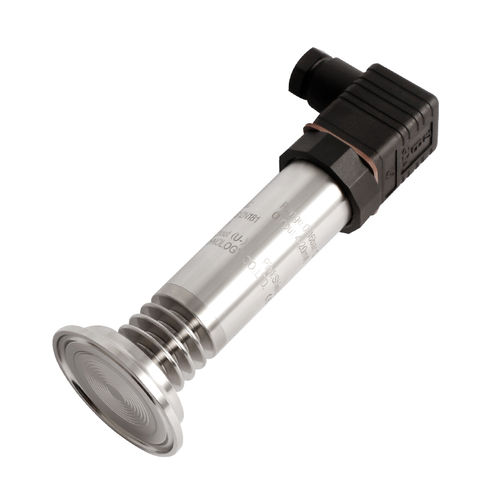

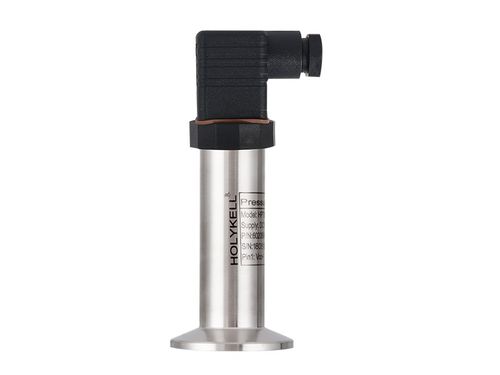

Relative pressure transmitter HPT602
piezoresistive4-20 mA0-10 V

Relative pressure transmitter - HPT602 - Holykell - piezoresistive / 4-20 mA / 0-10 V
Relative pressure transmitter - HPT602 - Holykell - piezoresistive / 4-20 mA / 0-10 V
Relative pressure transmitter - HPT602 - Holykell - piezoresistive / 4-20 mA / 0-10 V - image - 2
Relative pressure transmitter - HPT602 - Holykell - piezoresistive / 4-20 mA / 0-10 V - image - 3
Relative pressure transmitter - HPT602 - Holykell - piezoresistive / 4-20 mA / 0-10 V - image - 4
Relative pressure transmitter - HPT602 - Holykell - piezoresistive / 4-20 mA / 0-10 V - image - 5
Relative pressure transmitter - HPT602 - Holykell - piezoresistive / 4-20 mA / 0-10 V - image - 6
Relative pressure transmitter - HPT602 - Holykell - piezoresistive / 4-20 mA / 0-10 V - image - 7
Relative pressure transmitter - HPT602 - Holykell - piezoresistive / 4-20 mA / 0-10 V - image - 8
Add to favorites
Compare this product

Go to the Holykell website for more information

Characteristics

Pressure type
relative
Technology
piezoresistive
Output
4-20 mA, 0-10 V, 0-5 V, RS-485
Electrical connection
junction box
Supply voltage
24 Vdc, 12 Vdc, 5 VDC, 36 VDC
Mounting
flush diaphragm
Process connection
G 1/2, M20 x 1,5
Fluid
for liquids
Material
stainless steel
Protection level
corrosion-resistant, IP65
Applications
process, for the food industry, for pharmaceutical applications
Other characteristics
high-temperature, sanitary
Pressure range

Min.: -1 bar
(-14.5 psi)

Max.: 100 bar
(1,450.38 psi)

Precision

0.25 %, 0.5 %

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Description

Tri-Clamp type flat diaphragm sanitary pressure transmitter,can be customized to 150 ℃. A reliable, dead-space free sealing between the process connection and the measuring medium is thus assured. Application : ● Filling and packing machinery ● Dosing technology Advantages 01 For Sanitary or CIP (Clean-in-Place) Applications 02 316L stainless steel diaphragm, welded 316SS body construction shock and erosion 03 Flush process connection eliminates plugging 04 Advanced digital temperature compensation 05 Available with an integral cooling extension for high temperature applications
