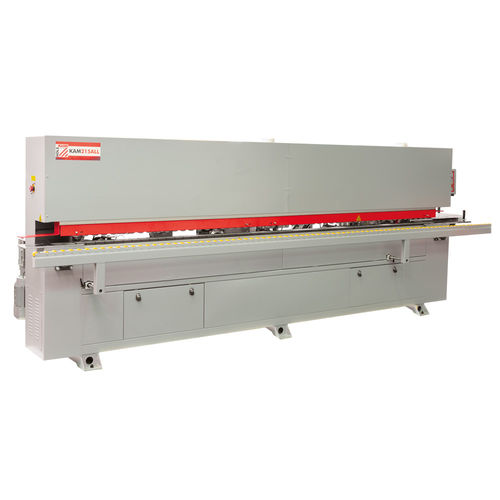

Automatic edge-banding machine KAM215ALL_400V

for wood

The established KAM215EPS is extended by a pre-milling unit and a corner-trim unit • touchscreen display • one-sided automatic edge banding machine with pre-milling unit (double cutter left/right rotation) with ø80 mm cutter equipped; 1,1kW motor per unit and 12000min-1 cutter speed glue tank with heating control and direct glue delivery to straight workpieces crosscut saw unit for cutting the edge band (one unit each for front and rear side) 0,35kW motor per unit and 12000min-1 (saw blade speed) double trimming unit for trimming the edge overhang on the workpiece (top/bottom) with form cutter straight or with radius 2 mm; 0,75KW motor per unit and 18000min-1 Corner trim (double trimming unit) one for the lower and one for the upper corner of the workpiece (0,3kW motor per unit) R-scraper unit (top/bottom side) polishing unit (top/bottom) 0,18 kW per unit and 1400min-1 • pressure rollers ensure an ideal connection between laminate and workpiece • automatic and constant panel feed thanks to chain conveyor drive and powerful motor • gluing temperature can be set electronically on the touch display • edge band support table
