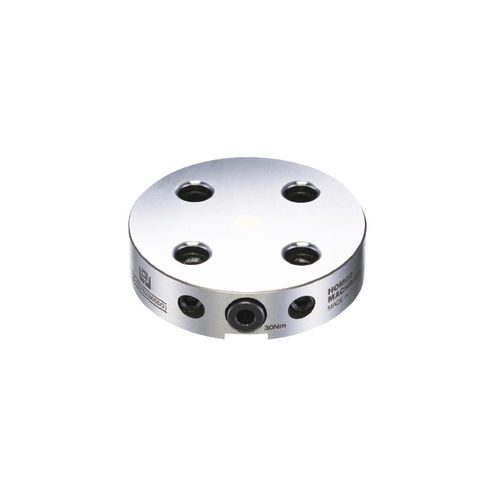

Round clamping plate M-52x52(8005G) | M-96X96(8054G)modularprecisionsteel
Add to favorites
Compare this product
Characteristics
- Type
- modular, precision
- Material
- steel
- Configuration
- round
- Other characteristics
- for quick coupling
Description
ROUND PLATE -G
MODEL：M-52X52(8005G), M-96X96(8054G)
1) Base plate can greatly save the positioning time of the fixture during change over
2) Installing Quick Change Device in the entire production line can effectively reduce the accumulated tolerance
3) Fixtures can be rotated 90 degrees while maintaining centering accuracy
4) Support common stud specifications in the market (52/ 96 mm bolt distance)
5) Various specifications for flexible configuration, especially suitable for 4, 5-axis machine tool with limited bed space
PDF:
https://www.homge.com.tw/pdf/198205/Zero-Point-Quick-Change-Devices-G.pdf
