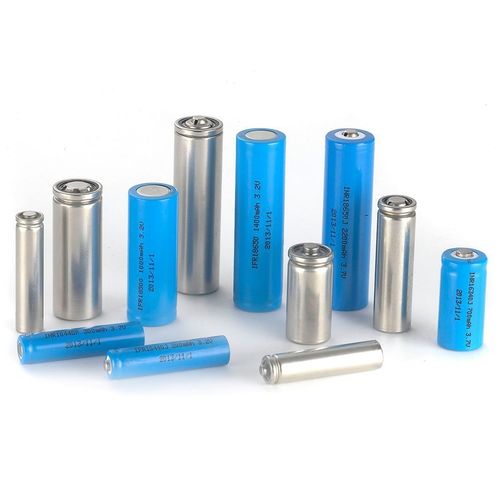

Lithium iron phosphate battery IFR seriescylindrical3 Venvironmentally friendly
Add to favorites
Compare this product
Characteristics
- Type
- lithium iron phosphate
- Configuration
- cylindrical
- Voltage
- 3 V
- Other characteristics
- environmentally friendly
- Load capacity
Max.: 6 Ah
Min.: 0.2 Ah
- Length / diameter
Max.: 32.2 mm
(1.3 in)Min.: 10.2 mm
(0.4 in)- Height
Max.: 65 mm
(2.6 in)Min.: 43 mm
(1.7 in)- Weight
Max.: 180 g
(6.35 oz)Min.: 7 g
(0.25 oz)
Description
The lithium iron phosphate (LiFePO4) battery, also called LFP (lithium ferro-phosphate) battery, is a type of
rechargeable battery which uses LiFePO4 as a cathode material, specifically a lithium-ion battery is finding
its market in electronics and consumer such as flashlight, lighting, portable power bank, ect,. LFP cell has 3.2V
nominal working voltage and shall be cut-off power at 3.65V per cell during charging. LFP battery has the lowest cost if considering its long cycle life.
1: Energy density 140Wh/Kg weight ratio, and 340Wh/L volume ratio.
2: Up to 2,000 cycles 80% DOD.
3: Operating temperature range,Charge: 0℃ to +45℃ Discharge:-20℃ to +60℃.
4: Safe/stable chemistry with no explosion & fire.
5: 1/3 weight of lead acid and 64% of Ni-MH.
