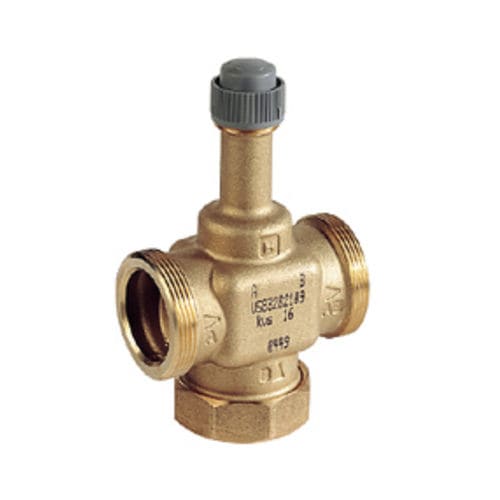

Ball valve V5832B serieselectricfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electric
- Function
- for control
- Media
- for water
- Body
- threaded, small, brass
- Applications
- heaters, for pipe, fan, coil
- Number of channels
- 2-way
- Other characteristics
- compact, modulating, bypass
- DN
25 mm, 32 mm, 40 mm
(0.984 in, 1.26 in, 1.575 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: 2 °C
(36 °F)
Description
V5832B series 2-way valves with pressure balanced plug are available in DN25, DN32, and DN40, for use in smaller control valve applications, providing first class control in a compact package and impressive close-off performance.
V5832B series with pressure balanced plug is available in DN25, DN32, and DN40 size, with external pipe thread and flat seal for maximum pipe connection flexibility. An impressive range of KVS values are available, to suit a wide range of applications. A long 6.5mm stroke allows for precise modulating actuator control.
Valves are used with compact electric actuators to form a space efficient assembly, but with very high performance. Flow characteristic is linear. Valve action: A-port is open with the stem in its bottom position.
Catalogs
V5832B/V5833A
4 Pages
