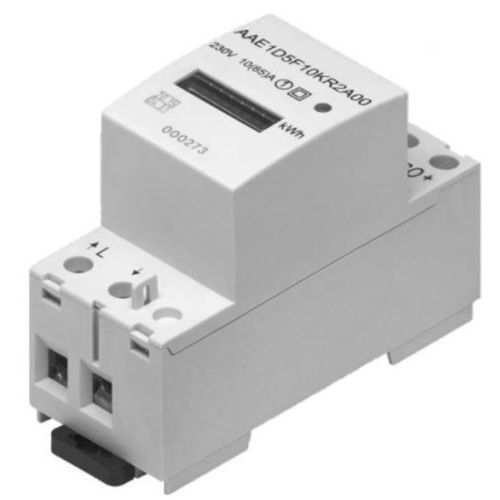

Single-phase electric energy meter AAD1

DIN rail

The AAD1 is a modern, electronic, single-phase energy meter. It is very economical on space, but also highly accurate in registering energy consumption: accuracy class 1 (according to EN62053-21) or accuracy class B (according to EN50470-3). The AAD1 is a modern, electronic, single-phase energy meter. It is very economical on space, but also highly accurate in registering energy consumption: accuracy class 1 (according to EN62053-21) or accuracy class B (according to EN50470-3). Since this meter has a high quality counter, it can be snapped onto DIN rail at any angle, without problem. A return stop ensures exact accounting. The counter can be read at any time, even without any current feed. Features & Benefits: Direct measurement Class 1 according to EN62053-21 Class B according to EN50470-3 MID approval S0+ / S0– output with1000 pulses/kWh (opt. 2000) Nom. current In = 5 A, Max. current Imax = 32 A Starting current ISt = 20 mA Mounting type: Surface mounting onto DIN rail, 35 mm Counting capacity: 0…999‘999.9 Display: Mechanical, 4 mm high digits, decimal place red Nominal voltage: 230 VAC; 50 Hz; P ≤ 0.4 W Function control: Red LED flashing, Intelligent error display Environment: Mechanical M2, Electromagnetic E2
