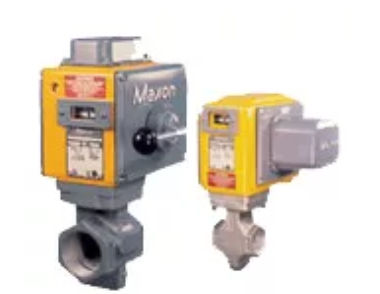

Ball valve 075SMA11

electrically-actuatedshut-offfor oil

These electrically actuated valves shut off gas or oil lines in less than one second. All shut off valves come equipped with MAXON's long-lasting metal-to-metal seating.A variety of optional body materials and body connections provide reliable operation even for highly corrosive fuels and for oxygen.Application flexibility is provided with 3/4" through 6" diameter line sizes, Cv flow factors up to 1230, and line pressures up to 125 PSIG (8.6 bar). Features & Benefits: Electrically actuated valves with powerful closing spring provide closure in less than 1 second for reliable, long-life operation Factory Mutual, CSA, UL and CE approved; Canadian registration obtained on all valve bodies Hazardous Locations valves approved for Nonincendive Class I, Division 2 areas Full assessment to IEC 61508 as SIL 3 capable Visual position indication provided Cast iron, carbon steel, low temperature carbon steel and stainless steel body assemblies with internal trim options to handle general purpose or corrosive gases; oxygen compatibility available Unique bonnet design eliminates packing adjustments, reducing maintenance and minimizing drag on closing MAXON electro-mechanical gas valves meet Fluid Control Institute (FCI) 70-2 control valve standard for Class VI seat leakage Field rotatable top assemblies in 90° increments to fit specific application requirements Actuator assemblies available with manual reset or automatic reset operators Normally-closed and normally-open versions available Overtravel position switches for open and closed position
