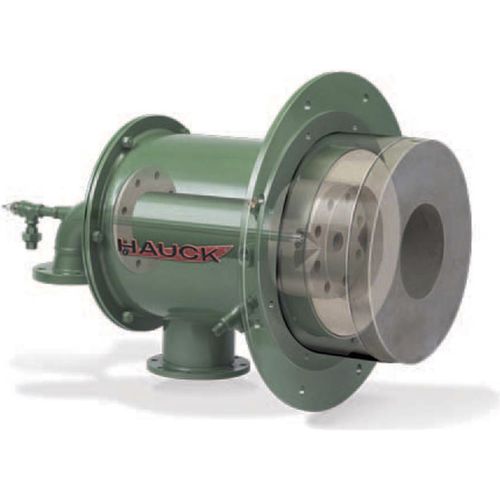

Nozzle mix burner BBG

natural gasfurnaceincineration

The Beta Burner comes in Gas Only (BBG) or Combination Fuel (BBC). BBG is an all purpose, high input industrial design burner with a high quality, rugged steel design. It is engineered to operate across a broad range of air/fuel ratios and optimized to product low emissions levels. Features & Benefits: Fuels: Natual Gas Alloy or refractory tile options On-ratio turndown varies with fuel type and excess air Low air and fuel pressure requirements Engineered to operate across a wide range of air/fuel ratios UV or Ionization flame supervision Insulated versions for preheated air up to 900°F (480°C) Direct Spark or Pilot ignition ??????BBC Multi-Fuel Combination Beta Burner is designed for durability and long life in continuous or intermittent operation in a variety of heating environments. Low air and fuel pressure requirements make it an ideal all-purpose burner for applications including thermal fluid heaters, oxidizers, rotary kilns, gypsum kettles, air heaters, and incinerators. The BBC also operates in applications under pressure or suction.Features and Benefits: Fuels: any clean industrial fuel with a higher heating value of 500 BTU/scf (19.7 MJ/nm³) Alloy or refractory tile On-ratio turndown varies with fuel type and excess air High quality, rugged steel design Low air and fuel pressure requirements Engineered to operate across a wide range of air/fuel ratios UV flame supervision Insulated versions for preheated air up to 900°F (480°C) Pilot ignition Low pressure atomization for light oil or liquid propane Compressed air atomization available for high altitudes or heavy fuel oils
