CNC drilling machine TGK - KD12TL
vertical

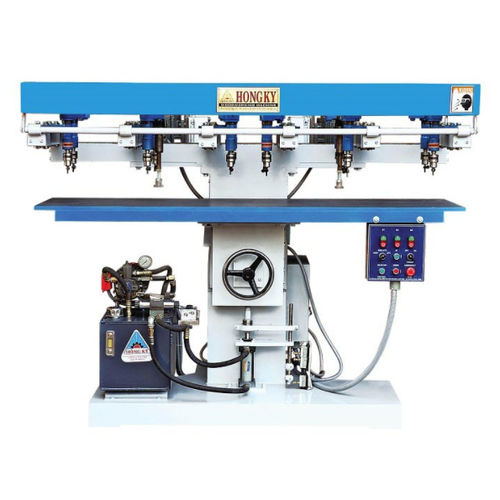

CNC drilling machine - TGK - KD12TL - Hong Ky Mechanical Company - vertical
CNC drilling machine - TGK - KD12TL - Hong Ky Mechanical Company - vertical
Add to favorites
Compare this product


Characteristics

Type
CNC
Structure
vertical
Drilling diameter

Min.: 3 mm
(0.12 in)

Max.: 13 mm
(0.51 in)

Description

12-Bit Vertical Drill Machine (Hydraulic) Features: Able to drill 12 holes at a time Each drill bit can move forward / backward and left / right easily. Able moved up and down by hydraulic cylinder system PRODUCT PARAMETERT TECHNICAL SPECIFICATIONS - - TGK - KD12TL Hydraulic motor - - 1Hp - 3phases - 4P Motor of main spindle - - 2 x (5Hp - 3 phases - 4P) Drill bit - unit - 12 Device for clamping a workpiece - unit - 4 Table dimensions - mm - 1870 x 615 Displacement of the table - mm - 100 Shortest distance between 2 drill bits - mm - 55 Bit diameter - mm - Ø3 - Ø13 Machine dimensions (L x W x H) - mm - 2130 X 1460 X 1640 Machine net weight - kg - 1100
