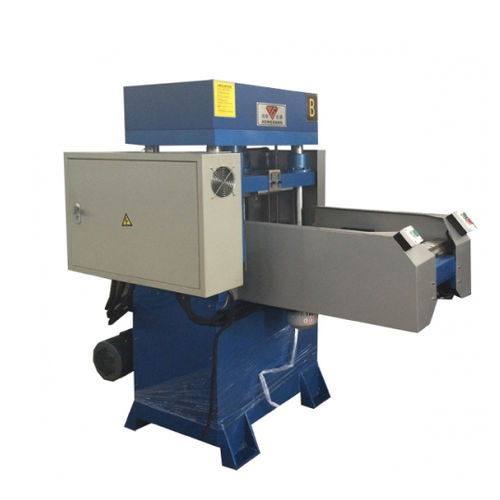

Sheet cutting machine HG-B15T

three-phasetable typeautomatic

15 Tons Semi-Auto Double-Side Hydraulic Press Cutting Machine We design this kind of small hydraulic press cutting machine, with two-working sides, for the request of small blister sheet cutting, only with 15 tons. It is controlled by PLC to set the working speed, pressure, head height. Even though it's small type but also easy to operate. And double-sides working table allows two workers worker together, just like two machines working to increase the output. Product parameters: Press Cutting force: 15 tons Press Cutting area: 500x500mm Stroke: 50-160mm, 50-240mm Options Working pressure from 15 tons to 200 tons. Working area from 558x1220mm to 810x1600mm Automatic cutting Precision Cutting Manual cutting Double side Cutting Single side cutting Heating cutting Cutting with stacker Specifications Cutting force - 15 tons Cutting area - 500x500mm Working tables - double table Feeding table type - Chain feeding Motor - 2.2kw Stroke - 50-160mm, 50-240mm Voltage - 3 phase 220/380/415/440V 50/60HZ Dimension - Net weight Industries Application Decorative False Ceiling, Mfrs. Small trays, Mithai Boxes. Packaging of industrial & Commercial products, Pharma, Cosmetics, Automobile, Spare parts, Toy games & related products, Stationery Industry, General Hardware Etc.
