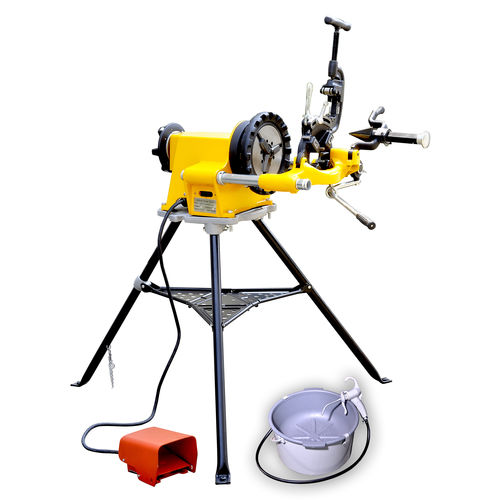

External threading tool SQ50D

manualfor pipe ends

SQ50D 1/4"-2 " Pipe Threading Machine Compatible with 300 Threading Machine Working Capacity: Pipe Capacity: 1/4"-2" (6-50 mm) Bolt Capacity: M 12-M 45 Features 1. Recessed On/Off/Reverse switch. 2. Approval by CSA and CE standards. 3. The SQ50D power drive is ideal for use with roll groovers. 4. Convert a SQ50D Power Drive to a portable Threading Machine Specifications Motor: 1500W Universal, reversible motor, single-phase,110V or 220V, 50/60Hz. Switch: Heavy-duty FOR/OFF/REV and Integral Foot Switch. Chuck: Speed chuck with replaceable rocker-action jaws. Spindle Speed: 38 RPM (57 RPM available) Rear Centering Device: Cam-action turns with chuck. Support Bar: Heavy-duty Standard Equipment Model SQ50D Power Drive with foot switch Quick-open die head, universal ½”-¾” universal HSS dies set. 1”-2” universal HSS dies set. Pipe cutter: Capacity: 1/8”-2”(3 mm-50 mm) pipe Pipe reamer: Positive-locking, 5-flute cone, right-hand 1/8”-2”(3 mm-50 mm). Carriage with lever. TRIPOD support stand Oiler
