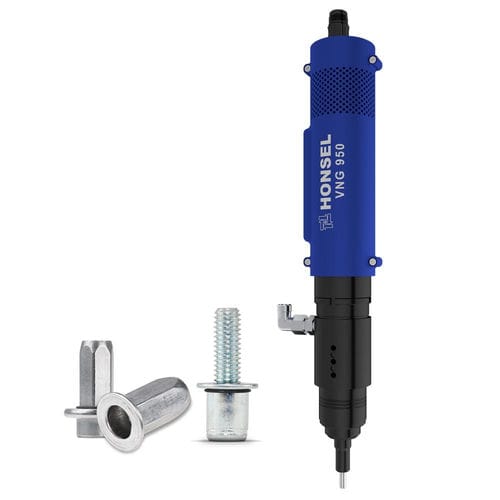

Blind rivet nut setting tool VNG 950

Electric-hydraulic setting tool for stationary automated or hand-held processing of blind rivet nuts and studs. Perfect combination of high setting force, slim design and low weight. The narrow design allows a small centre distance for modular design. - Process monitoring DMSD 2G Displacement encoder with resolution 0.01 mm Sensor technology force measurement via hydraulic pressure - Hydraulic connection for pressure intensifier - Mechanical connection - Tolerance compensation Position offset 1.5 mm Angular misalignment 8° - Electric motor Monitoring of torque and rotationangle during spindle mounting and dismounting - Hydraulic hollow piston cylinder stroke 12 mm setting force up to 58 kN - Quick-change system For fast handling and low-maintenance operation Low tool costs by using DIN screws as mandrel (option)
