Standard and characteristic

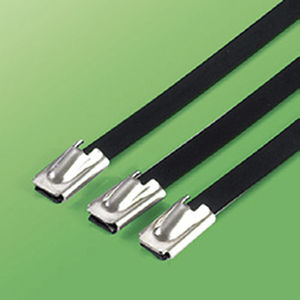

Stainless steel cable technical feature brought to pitch accord with " electric equipment of boat No. of IEC92, totally " is it mould with GB1113-85 metal cable is it bring to pitch to make “ and " steel seagoing vessel enter magnitude and build norm " relevant regulation. Pitch and take the normal environment temperature of condition of work - 25 degrees Centigrade -160 degrees Centigrade.
500N of pulling force, noumenonn material ICr18Ni9. Suitable for tying up the cable in the internal and external places of the room, such as in the open, humidity, high temperature .etc., resist and rub. be anticorrosive .resist and radiate and fire prevention performance.
$48 Specification - Specification - Specification - Specification
4.6x127 - 7.9x150 - 10x150 - 12x200
4.6x152 - 7.9x200 - 10x200 - 12x250
4.6x200 - 7.9x250 - 10x250 - 12x300
4.6x250 - 7.9x300 - 10x300 - 12x350
4.6x300 - 7.9x350 - 10x350 - 12x400
4.6x350 - 7.9x400 - 10x400 - 12x450
4.6x400 - 7.9x450 - 10x450 - 12x500
4.6x450 - 7.9x500 - 10x500 - 12x550
4.6x500 - 7.9x550 - 10x550 - 12x600
4.6x550 - 7.9x600 - 10x600 - 12x650
4.6x600 - 7.9x650 - 10x650 - 12x700
4.6x650 - 7.9x700 - 10x700 - 12x750
4.6x700 - 7.9x750 - 10x750 - 12x800
4.6x750 - 7.9x800 - 10x800 - 12x850
4.6x800 - 7.9x850 - 10x850 - 12x900
- 7.9x900 - 10x900 - 12x950
- 7.9x950 - 10x950 - 12x1000
- 7.9x1000 - 10x1000 - 12x1050
- 7.9x1050 - 10x1050 - 12x1100
- 7.9x1100 - 10x1100 - 12x1200
