OPzS battery power V L series
tubular12 V6 V

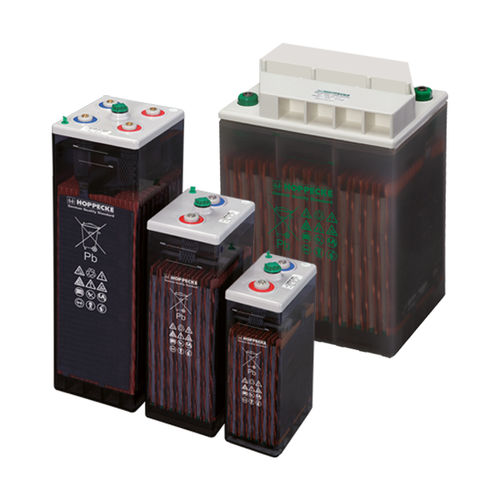

OPzS battery - power V L series - HOPPECKE - tubular / 12 V / 6 V
OPzS battery - power V L series - HOPPECKE - tubular / 12 V / 6 V
OPzS battery - power V L series - HOPPECKE - tubular / 12 V / 6 V - image - 2
OPzS battery - power V L series - HOPPECKE - tubular / 12 V / 6 V - image - 3
OPzS battery - power V L series - HOPPECKE - tubular / 12 V / 6 V - image - 4
Add to favorites
Compare this product


Characteristics

Type
OPzS
Configuration
tubular
Voltage
12 V, 6 V
Applications
emergency power supply
Other characteristics
stationary, liquid electrolyte
Load capacity

Min.: 28 Ah

Max.: 2,594 Ah

Length / diameter

Min.: 105 mm
(4.1 in)

Max.: 380 mm
(15 in)

Width

Min.: 208 mm
(8.19 in)

Max.: 580 mm
(22.83 in)

Height

Min.: 383 mm
(15.1 in)

Max.: 815 mm
(32.1 in)

Weight

Min.: 17.3 kg
(38.14 lb)

Max.: 229.6 kg
(506.18 lb)

Description

The grid | power V L (series OPzS) is a low-maintenance, vented lead-acid 2V cell in conventional technology with liquid electrolyte (dilute sulfuric acid). OPzS batteries are among the longest-lasting lead batteries and are absolutely reliable energy suppliers with a long service life and the highest level of reliability, even for critical applications. The vented lead-acid batteries consist of positive tubular plates and negative grid plates and, due to their structure, offer an extremely long cycle life. This is achieved by the protection of the active material through the woven polyester gauntlets. They are therefore ideal for use in areas with high cyclical and capacitive loads, such as energy supply systems, telecommunications equipment or long load times (between 1 h and > 10 h) for safety lighting. The grid | power V L is therefore a guarantee for maximum operational safety in your application. Area of Application Emergency power supply (UPS) Transformer Substations Safety lighting Nuclear powerplants Fossil power plants
