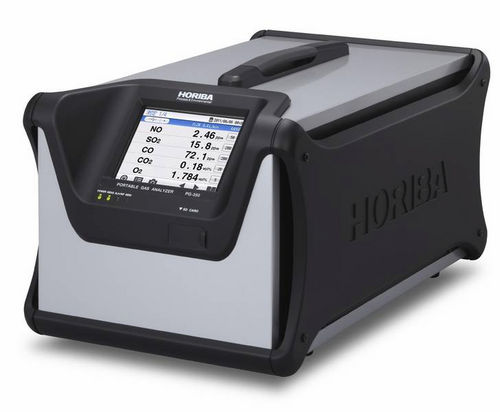

Flue gas analyzer PG-300

sulfurmethaneoxygen

Overview The PG-300 is compact and lightweight stack gas analyzer that can simultaneously measure up to five separate gas components. Its capability of precise measurement proves reliability in field measurements as well as its great performance in the lab facilities. Methane (CH4) analyzer is newly joined in the PG series and a total of nine models are lined up. The approx. 20% lighter body from previous model with the rugged side guards which prevent the analyzer unit from shocks and damages; the field concious design supports whatever the measurement scene is. An optional electronic cooler unit is available for long-term measurement under tough environments such as gas turbines, boilers, and incinerators facilities. PG-300 series is also suitable for solving envioronmental problems, measures of energy conservation, study of catalysts, and control of process gas. Features The Nox analysis unit uses a Cross-flow modulation chemiluminescence detection method; the SO2, CO, and CH4 units use a Cross-flow modulation Non-dispersive infrared (NDIR) absorption method; CO2 unit uses standard Non-dispersive infrared (NDIR) absorption method; and the O2 unit uses zironia method, galvanic method, and paramagnetic method for exclusively in EU area. PG-300 is comparable to large-scale, specialized units in terms of accuracy and offers a high degree of selectivity in analysis.
