OEM spectrograph CP140

CCD

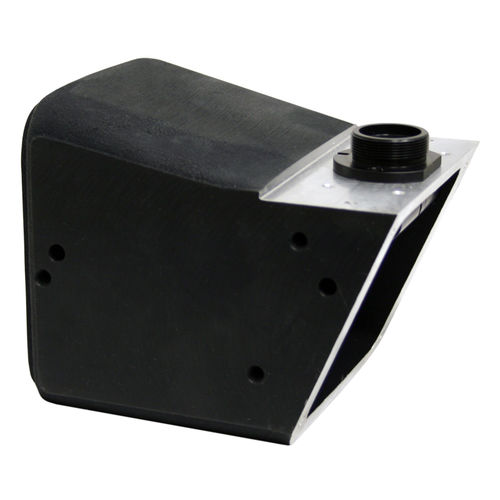

CP-140 Imaging Spectrograph, from OEM,offers an economical, robust, f/2, portable device which also provides optimum resolution. The CP-140 is an ideal choice for CCD variety of detectors and can be efficiently used with diverse fiber inputs or continuous arrays because of their features like holographic gratings, enhanced efficiency, ion-etched etc.With this device, the spectral regions from 190 nm to 2500 nm is covered by preferred gratings. These Imaging Spectrographs with Multiple Fiber input provides the benefit of monitoring 5-10-20 and more individual fiber channels by using a single spectrometer. The 5-6 concurrent channels with a CCD height of more than 6 mm i.e. CP140 or the 8-20 non concurrent channels or OEM-CC-55 can be devised with several fibers at the port of entry. Lower levels of cross-talk, stray light and option of economical high quality CCD detectors. This is a one stop solution for high spectral resolution needs.
