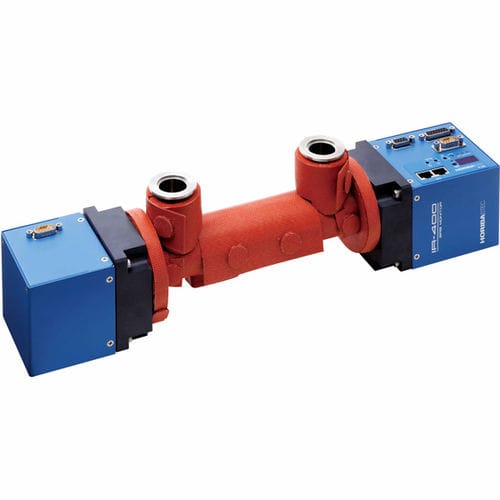

Gas monitoring equipment IR-400

The IR-400 offers real-time monitoring of the chamber cleaning end point during the deposition process. By optimizing the cleaning process, the IR-400 reduces cleaning time and gas usage. This reduction in cleaning gas usage leads to a reduction in chamber damage and increases the life times of all the systems components. Multi gas monitoring (Supported SiF4 andCF4) (IR-422) High sensitivity Gas cell heating function up to 180 dec.C Multi-display Analog/Digital communication. Benefits of real-time end-point monitoring with the IR-400 Reduce time for chamber cleans Reduce usage of cleaning gases Repeatable and predictable clean process Longer lifetime of chamber components Reliable, High-performance Non-dispersive Infrared Absorptiometry (NDIR) The infrared absorptiometry method employed by the IR-300 Series uses the principle of the absorption by gas molecules of the infrared light emitted from an infrared light source. A sample output from a sample that has absorbed the gas being measured is compared to a reference output with no absorbance, and the result is converted into a gas concentration. The use of this double beam method enables long-term, stable measurement results to be obtained. The optical system is made up of a light source, gas cell and double beam detectors. The stability of the double beam detector has been proven over a period of more than 40 years.
