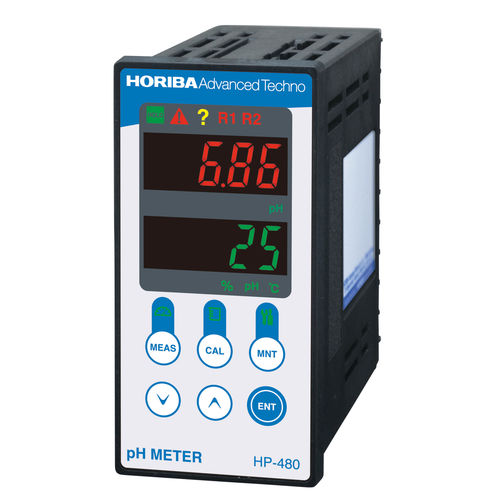

Portable pH meter HP-480(W)

process

The industrial pH meter, HP-480(W) is a standard type pH meter equipped with frequently used functions suitable for on-site use. It supports a wide range of applications from manufacturing process monitoring, quality inspection, fisheries, aquaculture and many other industries. Easy calibration Follow the easy and simple instructions on the display after immersing the pH electrode in standard solution, and press the ENT key for auto calibration. Automatic sensor check Automatically check the sensor condition during calibration for asymmetric potential, sensitivity, and response speed. An error message will appear if the sensor requires replacement. Compatibility with 5 types of temperature compensation elements Compatible with 500Ω, 6.8kΩ, 1kΩ, 10kΩ, and 350Ω temperature elements. Lead-free pH electrode lineup The pH electrode uses lead-free glass. In addition, all parts such as wires and joints are also lead-free. Uses lead-free solder In order to reduce the environmental load, the solder used to mount the components on the printed circuit is lead-free. Measuring range Temperature 0 to 100: resolution of 1°C (selectable) Power supply Rated voltage 100 to 240 VAC, 50/60 Hz, 10 VA (max.) Structure Indoor-use panel installation type Panel: IP65 drop-proof structure Protective structure Panel: IP65 (IEC60529, JIS C0920) Conforming standards CE Marking FCC Rule External dimensions 48 (W) x 96 (H) x 115 D mm Case depth: approx. 105 mm Mass Approx. 400 g
