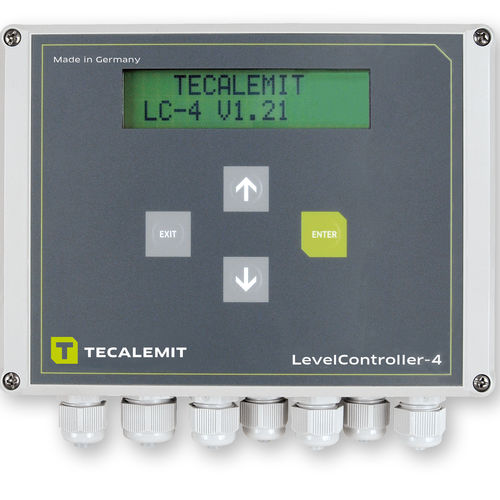

Storage tank level controller 225 702 000

LEVELCONTROLLER-4 AUTOMATIC TANK GAUGE WITH RS 422 DIRECT PC CONNECTION Level measurement for the connection of up to four level probes (not in scope of delivery, see accessories). Description Three potential-free alarm outputs Backlit text display Tanks: Up to 4 tanks, max. tank contents for each 999,999 liters Data connection: RS 422 PC connection for cables with a length of up to 1200 m Configuration via keys and remote configuration using a PC Evaluation is done using the HORN LevelControl program or H protocol The LevelControl program for parameterization and data transfer can be downloaded for free at www.tecalemit.de. Technical data Display - 2 x 16 Digit(s) Medium temperature max. - -10 - +50 °C Keypad - 4 Key(s) Digit height - 8 mm Temperature range - -20 - +50 °C Protection class - IP 54 Dimensions (W x D x H) - 200 x 80 x 180 mm Power supply (electrical) - 85-264 / 50-60 V / Hz
