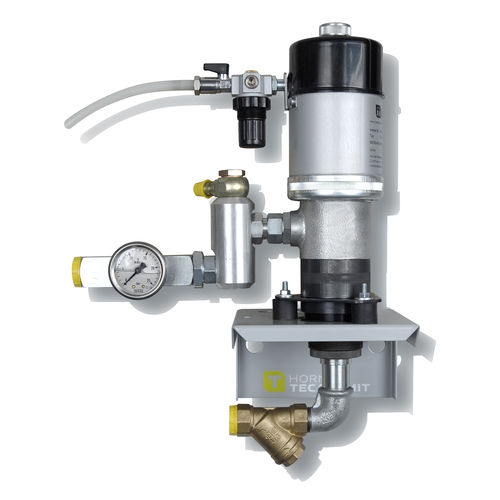

Axial piston pump TPKe

oilpneumatic-driveself-priming

PNEUMATIC PUMP FOR FRESH OIL REMOTE OIL EQUIPMENT TPKE, LEGALLY CALIBRATABLE This pneumatically-driven piston pump is used for the conveying of lubricants and similar fluids when the storage area and the dispensation area are in different places. The high-performance pumps work using a liquid-filled system and guarantee a consistently high delivery performance even with long pipe distances and high counterpressures. The double-action axial piston pump is driven by an oscillating pneumatic motor with automatic reversing gear. Additional features include an oil pressure regulator, automatic shut-off as well as a vibration-absorbing rubber mounting and wall bracket. The design-approved, flexible pressure connector, as well as special suction lines for original containers and for various tank designs enable easy assembly and installation. Oil delivery systems for commercial activities are subject to legal calibration requirements. Description For engine oil, gear oil, hydraulic oil and radiator antifreeze Continuous overflow Air pressure regulator Air connection hose with plug Suction connector with G 3/4 dirt trap Without suction line, without pressure line
