- HORN GmbH & Co. KG TECALEMIT

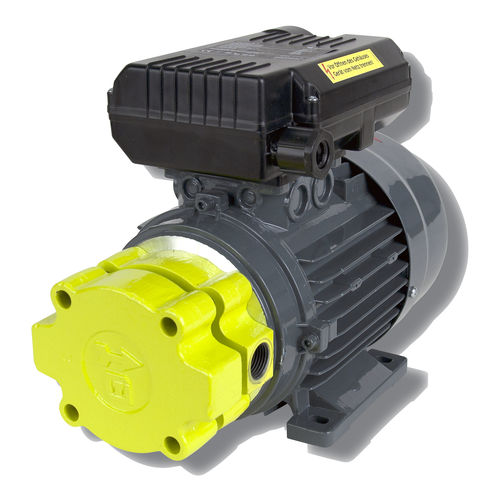

Gear pump TZ10I seriesoilelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Fluid
- oil
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- distribution
- Fluid specification
- for engine oil
- Voltage
- 230 V
- Protection level
- IP55
- Flow
10 l/min
(2.64172 us gal/min)- Pressure
10 bar
(145.038 psi)- Power
0.55 kW
(0.75 hp)- Fluid temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Length
320 mm
(13 in)- Width
155 mm
(6.1 in)- Height
237 mm
(9.33 in)- Weight
14 kg
(30.86 lb)
Description
ELECTRIC PUMP FOR FRESH OIL GEAR PUMP TZ10I, NON-CALIBRATABLE, NON-PORTABLE
Electrically-driven gear pump for pumping and dispensing liquid lubricating, non-flammable media.
Description
For engine oil, gear oil, hydraulic oil and radiator antifreeze (concentrate)
Internal overflow
Without overflow
