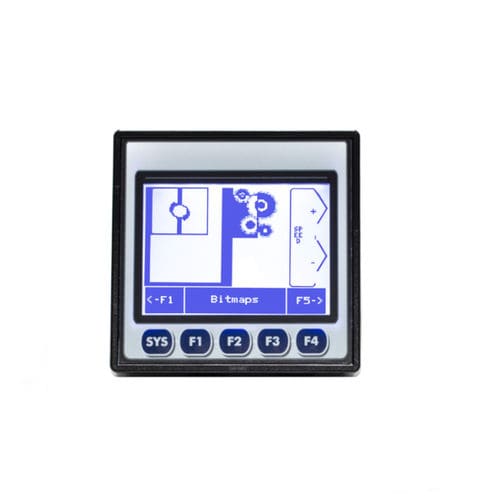

Compact PLC XLTe
on-boardwith integrated I/Oanalog inputs

compact PLC
compact PLC
compact PLC
compact PLC
compact PLC
compact PLC
compact PLC
Add to favorites
Compare this product


Characteristics

Type
compact, on-board
Input/output
with integrated I/O, analog inputs, digital input, digital outputs, analog outputs
Network
RS485, RS232, Ethernet, GPRS, DeviceNet
Other characteristics
with real-time clock, with integrated touch screen HMI

Description

3.5” Transflective LCD Monochrome touchscreen display with built-in I/O and Ethernet. -3.5” (160 x 128 Pixel) Monochrome Touchscreen Display -Full on-board 10/100 Mb Ethernet -Logic Scan Rates – 0.8ms/k Logic -Real Time Clock (± 90 secs/month) -Mini USB B 2.0, Programming -HSC (500 kHz) -Operating Temperature range -10 to +60 °C -PWM: Models 2,3,4 & 5 – 10 Khz and Model 6 – 65 Khz -High Capacity MicroSD Slot (support for up to 32GB) -GPRS and 3G Modem Support -CAN Protocols – CsCAN, CANopen, DeviceNet and J1939 -6 Models available, 5 with varying I/O 1 model without I/O XLTe is an XL-Series product, it’s compact physical design utilises a standard quarter DIN (92x92mm) cut-out. XLTe comes with extended hardware to include full on-board Ethernet 10/100 Mb support. XLTe offers a choice of flexible I/O configurations with six unique models to choose from (five optional models with built-in I/O and one without I/O), all of which include high speed counting capabilities (except for Model 0, no I/O version). If the built-in I/O of the XLTe isn’t enough for your specific application, it can be extended with any of our SmartStix, SmartRail and SmartMod remote I/O modules. The XLTe utilises a sunlight readable touchscreen, supports full monochrome graphics capabilities. XLT offers benefits such as, datalogging, Real Time Clock and multi-language support (custom fonts for different languages, symbols, etc). XLTe supports all current Ethernet based protocols. The added Ethernet is very advantageous, in that it allows for remote accessibility without the need for an add-on Ethernet card.

Catalogs

No catalogs are available for this product.

See all of Horner Automation‘s catalogs

Other Horner Automation products

Monochrome Touchscreen OCS
