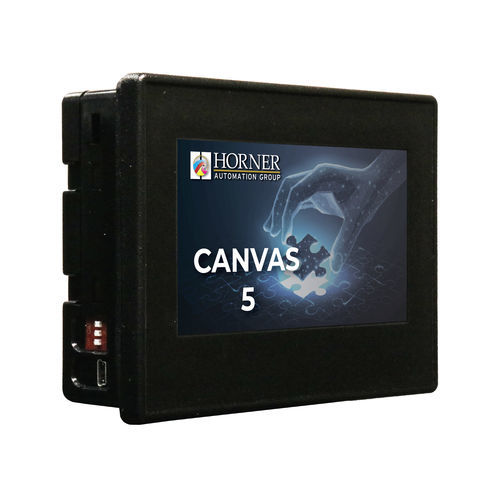

Canvas 5 Controller 4.3″, 4 DC In, 4 DC Out, 4 Analog In (mA/V)
The Canvas 5 is one of the new additions to the Canvas Collection of embedded I/O controllers. All units feature a built-in logic engine, operator interface, networking and I/O.
All new graphics engine built with Cscape 10 enhanced graphics
Multi-core SOM with dedicated logic and graphics cores
4.3″ (480×272) display with virtual function keys
12 I/O points onboard including 4 DC In, 4 DC Out and 4 Analog In
Ethernet, RS232/485 serial ports, 1 CAN port, 2MB logic memory
USB-A or Micro SD for data storage, same cutout as X5 Prime
Online Programming and MQTT support, as well as improved WebMI features
All Canvas models include WebMI+, MQTT, Enhanced IEC and J1939 features included as standard.
Networking features include:
(1) Built-in 10/100 Ethernet port
(1) Integrated CAN port that supports either CsCAN, CANopen, J1939 or DeviceNet Scanner
