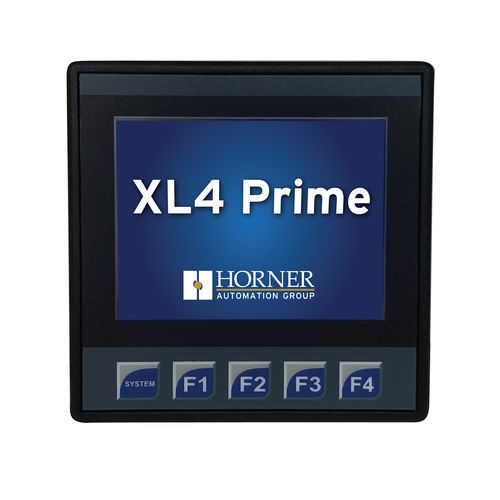

HMI with touch screen XL4 Prime

panel-mount320 x 240Intel® Celeron J1900

13Logic engine features 1MB of application memory with a 0.02mS/K logic scan. Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported. Operator Interface features include a 320×240 LCD TFT color graphics display with a high resolution resistive touchscreen, 4 function keys and a system key A USB 2.0 On-the-Go port (mini-B 5pin) is available for programming. A USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives. One (1) RS-232 and one (1) 485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols. Networking features include a built-in 10/100 Ethernet port, and an integrated CsCAN port. All units feature a microSD slot, supporting at least 32GB. The XL4 Prime is in the same ¼ DIN form factor as our extremely popular XLE and XLT. XL4 Prime has a full colour LCD TFT Display with QVGA resolution. XL4 Prime comes fully equipped with 100Mbps Ethernet built into every model. No additional Ethernet add-ons or accessories are needed. The XL4 Prime Ethernet support includes an integrated Web Server, FTP Host, Email, Modbus/TCP Master/Slave, Programming and more. The XL4 Prime includes both a USB Host port and a USB On-the-go Port – each at USB 2.0 speeds (480Mbps). The Host Port allows connection of removable FLASH drives, supporting drives up to 2TB. The On-the-go Port provides the fastest communications interface for Programme Change on Line (Online Change). XL4 Prime I/O expansion is not limited to its Built-in I/O.
