Propane pressure regulator HP 300for compressed airfor gasheated gas
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air, for gas, for inert gases, for oxygen, for nitrogen, for hydrogen, for natural gas, propane, heated gas, for CO2, for acetylene, for sour gas
- Technology
- diaphragm
- Number of stages
- single-stage
- Output signal
- analog
- Material
- chrome-plated brass, stainless steel
- Applications
- industrial, high-pressure, for medical applications, for analytical instruments, high-purity, for chromatography
- Other characteristics
- compact, with pressure gauge, for high flow rates, high-purity
- Pressure
Max.: 300 bar
(4,351.13 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 25 m³/h
(882.87 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Orifice diameter
0.25 in
- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description

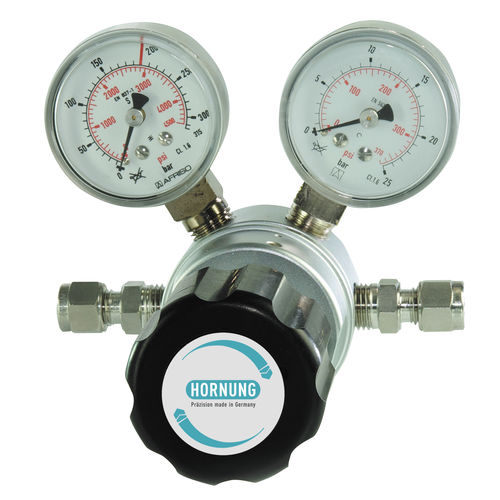

The line pressure regulator HP 300 is a single stage pressure regulator, brass nickel and matt chrome plated or stainless steel 1,4404 electropolished.
It is designed as a diaphragm pressure regulator.
The HP 300 reduces the pressure of com- pressed gases or fluids to a maximum outlet pressure of 17 bar.
It can be equiped optionally with in and outlet gauges.
special characteristics:
The line pressure regulator HP 300 is charac- terized through his high control accuracy at the pressure area from up to 17 bar.
Especially for gases with high requirements
of purity up to 6.0 for labratories and analytics. In case of our cleaning method the cylinder pressure regulator is ECD capable.
Stainless steel version allows the usage of aggresessive gases.
We recommend the installation of suitable safty valves to secure following equipment from improper high pressure.
