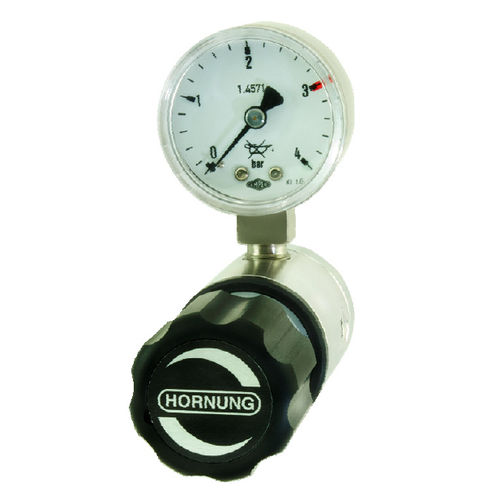

Gas pressure regulator HP 410heated gasdiaphragmsingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for gas, heated gas
- Technology
- diaphragm
- Number of stages
- single-stage
- Output signal
- analog
- Material
- chrome-plated brass, stainless steel
- Applications
- industrial, for medical applications, for analytical instruments, high-purity, for chromatography
- Other characteristics
- compact, with pressure gauge, miniature, modular, high-purity
- Pressure
Max.: 40 bar
(580.15 psi)Min.: 0 bar
(0 psi)- Orifice diameter
0.25 in, 0.375 in
- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
The HP 410 is a single stage pressure regu- lator with metal diaphragm construction.
It is used as a second stage in a central gas supply system for high purity gases.
The pressure regulator will be supplied with a gauge for indicating working pressure as standard.
The pressure regulator can be combined with our shut-off valve HP 502 and our metering valve HP 503. This pressure regulator is used in gas supply stations HP 400, HP 401, HP 402 and HP 403.
Especially for gases with high requirements on purity to 6.0.
Our special cleaning system for the HP series also guarantees the use for ECD applications.
