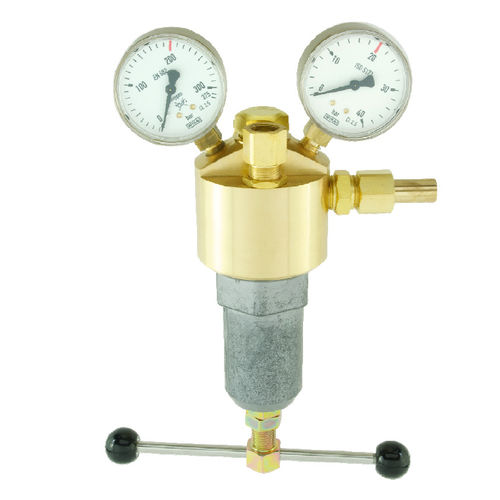

Propane pressure regulator ZD 150for compressed airfor gasheated gas
Add to favorites
Compare this product
Characteristics
- Product
- for nitrogen, for compressed air, for sour gas, for gas, heated gas, for inert gases, for oxygen, for hydrogen, for natural gas, propane, for CO2, for acetylene, for CNG
- Technology
- diaphragm
- Number of stages
- single-stage
- Output signal
- analog
- Material
- brass
- Applications
- industrial
- Other characteristics
- with pressure gauge
- Pressure
Min.: 0 bar
(0 psi)Max.: 300 bar
(4,351.13 psi)- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 280 m³/h
(9,888.11 ft³/h)- Orifice diameter
0.5 in
Description
The central pressure regulator ZD 150 reduces a maximum inlet pressure from 300 bar down to max. 40 bar and keep constant.
The ZD 150 is supplied in brass for non-corrosive, flammable (except acetylene) and non-flammable gases.
The ZD 150 is a single stage regulator with relief valve and certified to DIN EN 961 (ISO 7291) BAM.
The regulator is available in straight or 90° configuration and can also be supplied with a wall bracket.
