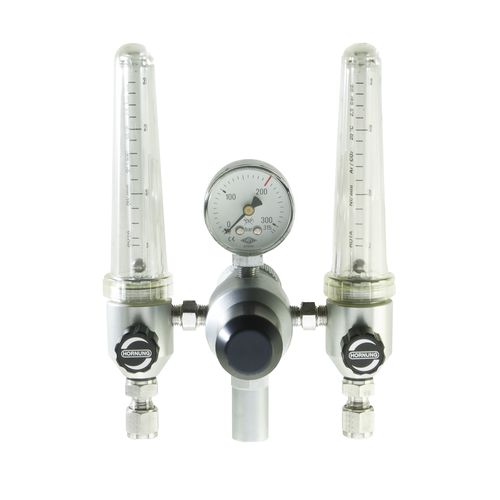

Inert gase pressure regulator FL series

gasfor CO2diaphragm

The cylinder pressure regulators from the series FL are equipped with 1 / 2 or 3 measurement tubes. It reduces cylinder pressure of compressed gases from a max. of 200 bar down to the outlet flow shown on the flowmeter measurement tube. The integrated balanced poppet ensures a constant and uniform pressure throughout the emptying of the cylinder. The exact amount of flow in l/min can be preset and read on the flowmeter measurement tubes. The pressure regulator is fitted as standard with gas specific connections to DIN 477. A relief valve is also fitted. The pressure regulator can be supplied as 1, 2 or 3x flowmeter with different measuring ranges. The cylinder pressure regulator of the type FL are used where an exact dosage of the flow is required. Gas types: - Co2/ Argon - inert gas - other gas types on request
