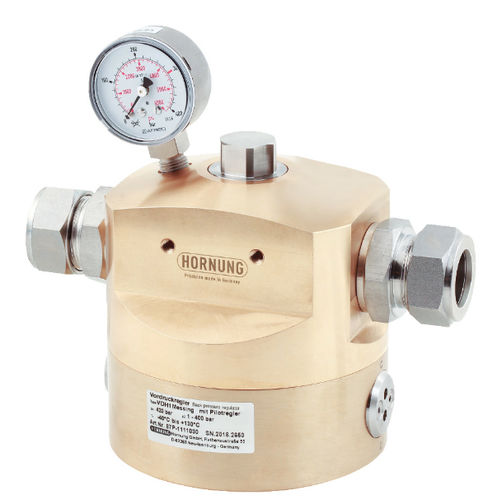

Gas pressure regulator VD 3/4dome-loadedsingle-stageanalog
Add to favorites
Compare this product
Characteristics
- Product
- for gas
- Technology
- dome-loaded
- Number of stages
- single-stage
- Output signal
- analog
- Material
- brass, stainless steel
- Applications
- industrial, precision
- Other characteristics
- with pressure gauge, high-precision, high-flow
- Pressure
Max.: 110 bar
(1,595.42 psi)Min.: 0 bar
(0 psi)- Orifice diameter
0.75 in
- Temperature
Max.: 150 °C
(302 °F)Min.: -40 °C
(-40 °F)
Description
• Dome back pressure regulator for high precision and reliability
• easy installation and operation and standardized connection options (NPT/G) allow fast integration into the pipeline system
• integrated form control with self-contained medium without external control pressure regulator
• stepless regulation without shut-off valve in the output
• high user safety due to inherent safe construction
• high flow range and high pressures
• minimum pressure difference up to 2% (small hysteresis) between opening and closing
• maximum accuracy, thanks to large-area membrane (EPDM or FKM)
