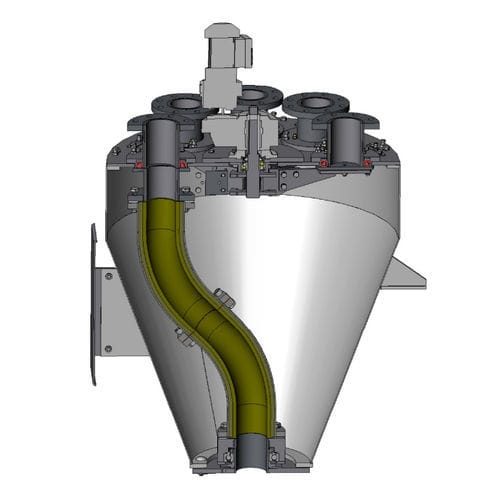

Multi-channel diverter valve MWW series

for pneumatic conveyingfor grainfor bulk materials

Diverters for pneumatic pressure conveying pipelines or collector of vacuum conveying pipelines, up to 20 exits, plane and jointfree material duct, free of clearence volume. Distributor for pneumatic pressure conveying pipelines or collection of vacuum conveying pipelines, up to 20 exits; can also be used as a collector; smooth and shock-free material flow; no dead zones. • Suitable for all bulk solids • Approved as per pressure equipment directive 97/23/EC • No dead zones, no product residues • Robust and fail-safe • Versions: Temperature-resistant up to 250° C Wearing-resistant with ceramic coating Anti-adhesion with plastic or rubber coating “Clean” in stainless steel Crack-free, easy to dismantle, conform to FDA rules The multi-way diverter is installed in a pneumatic conveying system and is used to switch over the conveying flow to different exits. The exit for the desired target location is selected before starting the pneumatic conveying; the distributor pipe then moves to this exit. All exits are pneumatically sealed after reaching the position. The incoming conveying pipeline is connected with the outgoing pipeline through the distributor pipe which is rotated by a worm geared motor. The distributor pipe is supported in a bearing bush in the inlet collar and in a ball joint bearing with casing.
