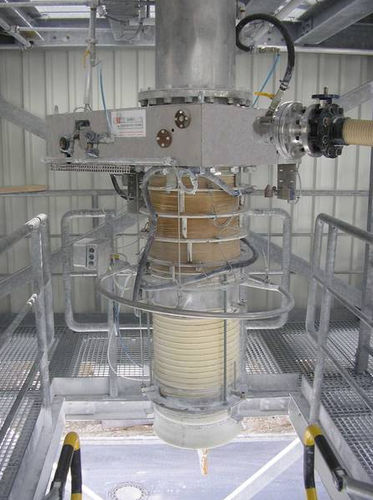

Telescopic loading spout TLB

for trucks

For dustfree loading of bulk solids out of silos or processes into trucks or railway carriage. For dust-free loading of bulk solids from silos or processes into trucks or wagons. Version with dual bellows and dustproof docking system. • Fail-safe due to the electro-pneumatic installation, level sensor, limit switches and complete control unit • Dustproof due to pneumatically sealed filling neck, no environmental pollution, no cleaning costs • Less suction air volume, and therefore a smaller air filter and blower • Reduced investment costs owing to savings in the filter and the blower when feeding the displaced air back to the silo • Less operating costs owing to high loading capacity and short holding times of the vehicles • Can be used globally; suitable for almost all bulk solids • Dustproof pneumatic seal of the loading neck due to inflatable blowing hose • Connection for suction or deaeration pipeline to the silo; optional with a filter and a blower • Seal cone: closes the outlet opening to prevent the product from trickling down when lifting the loading head • Limit switch for the “Top” and “Bottom” positions • Geared motor for lifting and lowering The TLB type loading chutes with the electrical winch version are intended for dust-free loading of silo trucks from silos and bunkers, wherein the filling openings of a silo truck are placed exactly below the loading chute. The loading telescope moved to the idle position is then released using the electrical winch until the rest is positioned on the loading opening. At the same time, the conical seal moves to the end of the loading telescope so that the filling process can start.
