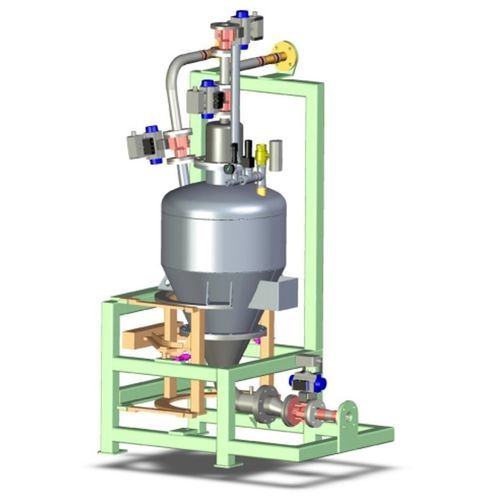

Dense phase pneumatic conveying system PCV

positive-pressurefor powdersfor bulk materials

The compact batch vacuum push conveyor: Reliable technology for safe conveying of even those products that have poor flowing properties The conveyor is evacuated using the VACUFILL technique. The product is sucked and selffilled into the conveyor. The vacuum conveying takes place gently as dense phase conveying at a relatively low conveying speed and high product load. The pressure conveying takes place using the push conveying process at an operating pressure of up to 6 bar. • Nearly unrestricted length of pressure conveying route • Simple and accurate registration and balancing of the mass flow capacity • Formation of weighted batches • Connection of multiple suction routes allows batches comprising different components • Loading multiple reception points by using diverter valves in the pressure conveying pipeline • Direct feed into mixers, reactors and dissolvers is possible even in case of counterpressure The “product inlet” valve open for sucking the bulk solid. The vacuum now sucks the bulk solid by the dense phase into the batch vacuum push conveyor. After reaching the top level or the desired weight, the “product inlet” valve and the vacuum valve close.
