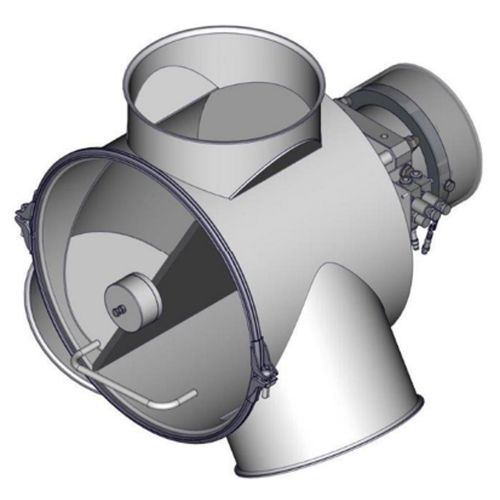

Poppet pneumatic directional control valve VDP-Hygienic-Dry series

pneumatically-operatedelectrically-operated3-way

Hygienic-Dry Design acc. to EHEDG-Guidelines for dry processes with drycleaning system. • fulfills 2006/42/EC Machinery directive and GMP-requirements • easy to dismantle, easy to clean by removable housing cover with quick clamping ring and plug-in flap • easy, cost-efficient assembling • flap easy to dismantle without tool • self-cleaning by twisting the flap over 270° • Product temperature max.: 80°C • Max./min. ambient temperature: -10 °C ≤ T ≤ 50 °C • Solid to bulk data: powders, medium hardness, free flowing up to limited flowing products Switching during flowing product flow is only admissible in exceptional cases and after agreement of the manufacturer. Interrupt the product flow shortly before switching (e.g. lock using a slide gate, stop the conveyor device). It is not allowed to switch the flap in the non-flowing product column. It is not allowed to switch the flap, if in one exit the product is not flowing out.
