Electronic scale GSC series

kgstainless steelindustrial

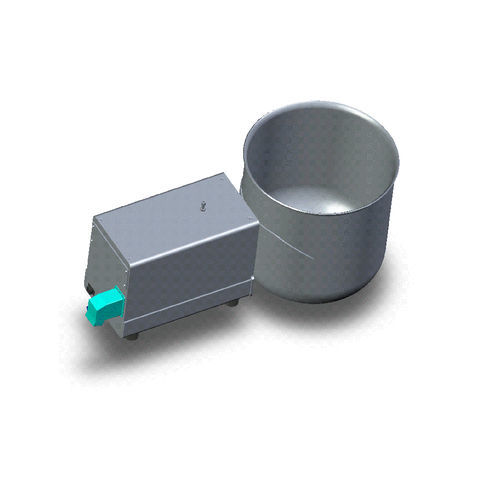

Weighing hopper, 180° rotable for emptying, very compact design, scale capability up to 50 kg, very high accuracy, ideal for small components +- 1 g. The weighing vessel is designed as a rotating bowl that is turned by 180° for emptying. This simple concept enables a compact assembly and high accuracy at a weighing capacity of up to 60 kg. • Complete emptying • Automatable for up to 9 components • Suitable for recipe compilation The rotating bowl scale is designed for weighing the batches of small/smallest components with high accuracy. It has a simple and robust design. It can weigh bulk solids as well as liquids. It consists of a housing with a weighing device, a rotating drive and a plugable rotating bowl as a weighing vessel that can be mounted/dismantled without any tool. The extremely compact shape and the nearly quadratic design of the weighing vessel with a pivot pin attached at the centre ensure minimum installation space. In the filling position (normal position), the opening of the rotating bowl faces upwards. It is turned by 180° (opening faces downwards) for emptying. The positions are checked using initiators. A test weight is provided for functional check. It is placed on the weighing device using a pneumatic cylinder. An error message is generated if the weight is not in the prescribed tolerance zone. This check is executed fully automatically, and ensures the correct functioning of the scale. A transportation lock is provided for the test weight.
