Combination of pneumatic vacuum conveying with hopper scale and dosing for compose charges.

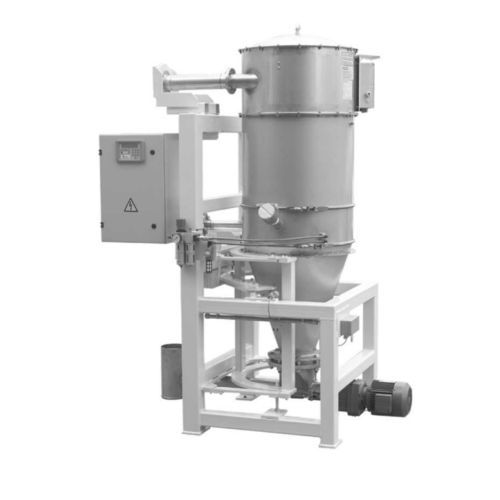

Vacuum scale for large product batches to implementation in combination with:
• Storage of large components in silos
• Delivery rate 9 t/h
• Conveying route 30 m vertical / 38 m horizontal
• Poorly flowing product
• Vessel size 2.5 m³
• Metering accuracy: ± 1.0 kg
• Metering accuracy with fine dosing ± 100 gr
• Exact gravimetric metering as per the recipe
• Residue-free discharge from vacuum hybrid scales
• Fail-safe due to proven system
• Efficient operation
• Fully automatic sequence
• Space-saving assembly
• Absolutely dust-free unloading, metering and conveying
• Process accuracy achieved using precise interplay between the system components
