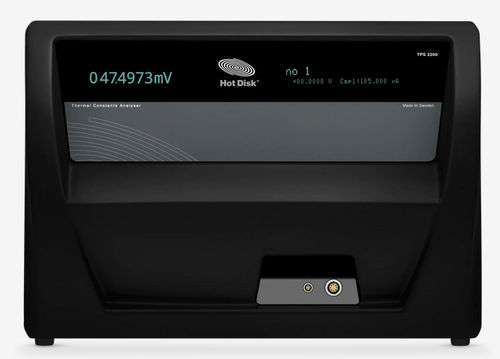

Thermal conductivity measuring instrument TPS 2200

temperatureR&Dbenchtop

The Hot Disk TPS 2200 is a general-purpose, affordable R&D instrument for accurate measuring of Thermal Conductivity, Thermal Diffusivity, Thermal Effusivity and Specific Heat Capacity, when performance and price are both in consideration. The TPS 2200 tackles a satisfying range of sample geometries, including down to millimeter-thick bulk samples. It can measure Thermal Conductivity from 0.01 to 500 W/m/K, and handles a temperature range from -100 °C to 750 °C. It can also analyse the anisotropic thermal transport properties of uniaxial materials. The TPS 2200 naturally meets ISO 22007-2 and is CE marked. For day-to-day testing This general-purpose R&D instrument is designed for precision analysis of thermal transport properties – including thermal conductivity, thermal diffusivity and specific heat capacity. The TPS 2200 covers a significant span of materials of various geometries and dimensions, including solids, pastes and liquids. While not as versatile as the flagship TPS 2500 S, it meets ISO Standard 22007-2 just like its more powerful sibling. The restrictions compared to the TPS 2500 S chiefly regard sample size, measurement time and maximum thermal conductivity tackled (see comparison here). Being slower than the TPS 2500 S, the TPS 2200 is not suitable for measurements of tiny samples, and/or ones of very high thermal conductivity. The TPS 2200 is however an excellent option for measurements of larger bodies of extruded polymers, building- and insulation materials, sheet metals, laminated samples etc.
